Catalog

This catalog details our product line of Su-Por porous polyethylene surgical implants. Please contact us with any questions.

polyethylene craniomaxillofacial implant catalog
Four implants

SU-POR Surgical implants in block, sheet, and anatomical shapes are intended for non-weight-bearing applications of craniofacial reconstruction surgery and repair of craniofacial trauma. SU-POR Surgical Implants are also intended for the augmentation or restoration of contour in the craniomaxillofacial skeleton.

Overview

SU-POR Surgical Implants are used in the reconstruction and augmentation of the craniomaxillofacial area. Su-Por is made from pure high-density polyethylene (HDPE). When processed, Su-Por becomes a porous graft that allows tissue integration. This top-performing material has been supported with clinical data since 1985. Su-Por graft material has superior suturability, is easy to cut, and holds its shape when bent to meet patient needs.

Neurosurgery

  • Craniotomy
  • Craniectomy
  • Approach Closure
  • Sella Turcica Closure

Otolaryngology

  • Microtia Repair
    • Porous HDPE
    • Rib Graft
  • Septoplasty
  • Rhinoplasty
  • Mentoplasty
  • Skull Base Closures
  • Cleft Lip

Oral Maxillofacial

  • Mentoplasty
  • Mandibular Augmentation
  • Orbital Floor Repair

Facial Plastics

  • Orbital Floor Repair
  • Rhinoplasty
  • Microtia Repair
    • Porous HDPE
    • Rib Graft
  • Brow Lift
  • Mentoplasty
  • Cleft Lip

Ophthalmology

  • Enucleation
  • Evisceration
  • Brow Lift
  • Enophthalmos
  • Lid Retraction
  • Lower Eyelid Graft

Features and Benefits

Integration

  • The interconnecting open pore structure of Su-Por Surgical Implants allows for tissue ingrowth.

Modification

  • Su-Por Surgical Implants may be carved using a scalpel, a burr, or cut with scissors. Contour adjustments may be made intraoperatively.

Sterilization

  • All Su-Por Surgical Implants are provided STERILE. Su-Por Patient-Specific Implants are provided with two STERILE implants, a non-sterile sample, and a medical model of the defect for surgical planning within 8 business days.

Fixation

  • Fixation of Such -Por Surgical Implants may be achieved using sutures, surgical fixation screws, or K-wire. Fixation screws may be placed directly through the implant without pre-drilled holes.

Specialty Legend

Neurosurgery

Neurosurgery

Ophthalmology

Ophthalmology

Oral Maxillofacial

Oral Maxillofacial

Otolaryngology

Otolaryngology

Facial Plastics

Facial Plastics

Neurosurgery

Block

The Su-Por Block gives surgeons an excellent option for craniofacial reconstruction and augmentation. Su-Por Block implants are available in multiple sizes and thicknesses to ensure that the surgeon has the proper amount of biomaterial for almost any possible contour or shape.

Cat#ABC
401913mm38mm3mm
402029mm50mm3mm
402138mm63mm3mm
402213mm38mm6mm
402325mm50mm6mm
402438mm36mm6mm
402513mm38mm9.5mm
402625mm50mm9.5mm
402738mm63mm9.5mm

Review the Block product in 360°.

Download the Block Product Specification PDF.

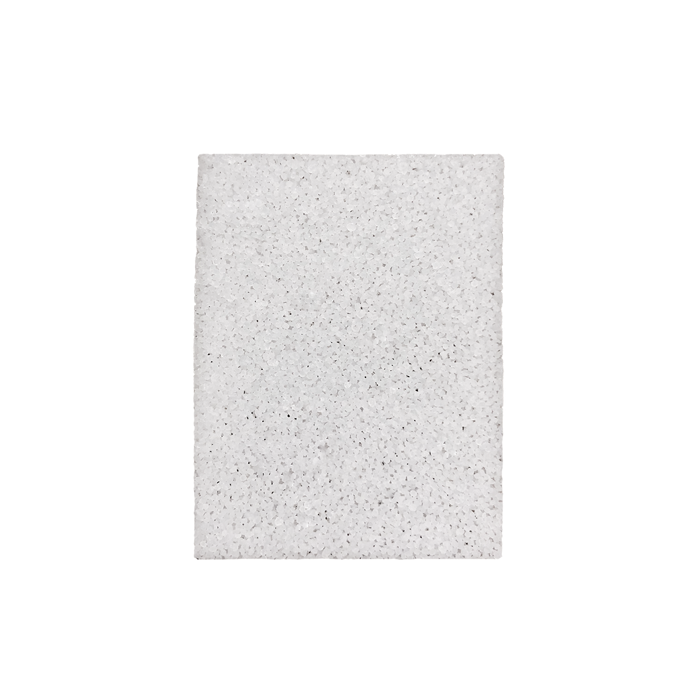

Sheets

The Su-Por Sheet provides surgeons with an excellent option for craniofacial reconstruction and augmentation.

Cat#ABC
400138mm50mm0.25mm
400250mm76mm0.25mm
400338mm50mm0.35mm
400450mm76mm0.35mm
400530mm50mm0.40mm
400638mm50mm0.45mm
400750mm76mm0.45mm
400838mm50mm0.85mm
400950mm76mm0.85mm
401238mm50mm1.5mm
401350mm76mm1.5mm
401538mm50mm3.0mm

Review the Sheets product in 360°.

Download the Sheets Product Specification PDF.

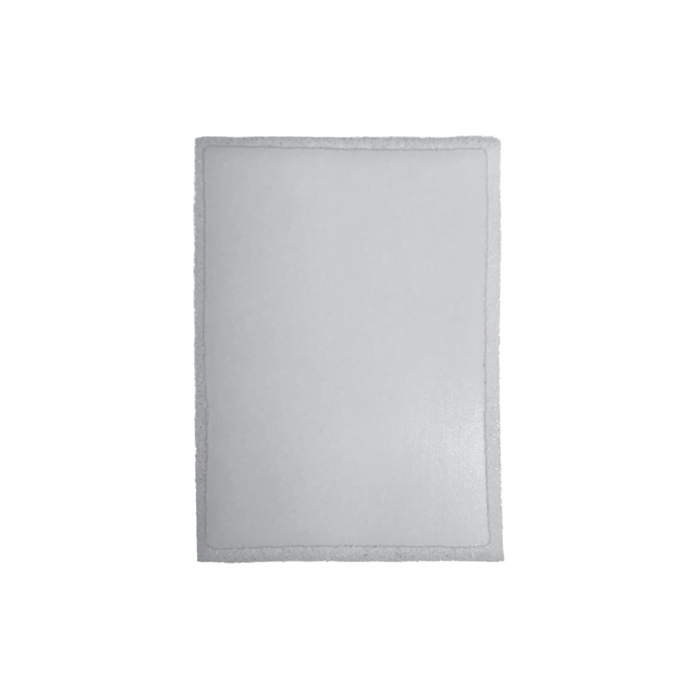

Membrane Sheet

The Su-Por Membrane Sheet is designed to selectively prevent tissue attachment to one side of the implant surface. The membrane layer is comprised of solid polyethylene and porous layers that are heat bonded without adhesives or additives. Tissue integration occurs in the porous layer just as with the fully porous Sheet implant. U.S. Patent No. US09724198.

Cat#ABC
423138mm50mm0.60mm
401638mm50mm1.0mm
424138mm50mm1.6mm
401750mm76mm1.0mm
401850mm76mm1.6mm

Review the Membrane Sheet Product in 360°.

Download the Membrane Product Specifications Sheet PDF.

Flex Sheet

catalog flex sheet

The Flex Sheet is designed for small to medium sized cranial defects and deformities. It has a smooth exterior surface and a series of pedicles on the interior surface that are designed to provide volume and flexibility. The Flex Sheet is available with and without a membrane layer, allowing the surgeon to selectively prevent tissue ingrowth if desired.

Cat#DescriptionABC
4109Regular56mm91mm4.5mm
4134Regular + Membrane56mm91mm4.5mm

Review the Flex Sheet Product in 360°.

Download the Flex Sheet Product Specifications Sheet PDF.

Miniplate Channel Sheet and Microplate Channel Sheet

Ophthalmology icon
catalog miniplate channel sheet

The Miniplate Channel Sheet and Microplate Channel Sheets are designed for repair of significant orbital floor and wall trauma where the addition of a rigid fixation plate provides structural support.

Miniplate Channel Sheet

Cat#ABCChannel Width
429840mm52mm2.3mm4.0mm

Microplate Channel Sheet

Cat#ABCChannel Width
429940mm52mm2.3mm2.3mm

Review the Microplate Sheet and Miniplate Sheet Product in 360°.

Download the Microplate Channel Sheet and Miniplate Channel Sheet Product Specifications Sheet PDF.

Membrane Miniplate Channel Sheet and Membrane Microplate Channel Sheet

catalog membrane miniplate and microplate channel sheet

The Membrane Miniplate Channel Sheet and the Membrane Mcroplate Channel Sheets are designed for repair of significant orbital floor and wall trauma where the addition of a rigid fixation plate provides structural support. The membrane layer acts to inhibit tissue ingrowth.

Membrane Miniplate Channel Sheet

Cat#ABCChannel Width
430040mm52mm2.3mm4.0mm

Membrane Microplate Channel Sheet

Cat#ABCChannel Width
430140mm52mm2.3mm2.3mm

Review the Membrane Microplate and Miniplate Channel Product in 360°.

Download the Membrane Microplate Channel Sheet and Membrane Miniplate Channel Sheet Product Specifications Sheet PDF.

Flor-Tec™ Composite Orbital Floor

catalog flor-tem™ composite orbital floor

The Su-Por Flor-Tech™ Composite Orbital Floor is a composite structure of Su-Por biomaterial It is comprised of a nonporous sheet and a leading porous strip. Non-porous high-density polyethylene acts to prevent tissue ingrowth while the porous strip may help to facilitate implant attachment.

Flor-Tec™ Composite Orbital Floor

Cat#ABC
423338mm50mm0.3mm
423238mm50mm0.4mm
423438mm50mm0.5mm

Review the Flor-Tec™ Composite Orbital Floor Product in 360°.

Download the Flor-Tec™ Composite Orbital Floor Product Specifications Sheet PDF.

3D Orbital Floor

catalog 3d orbital floor

The 3D Orbital Floor is an off-the-shelf anatomic design based on CD scan data. The structure is comprised of a porous bone side and a non-porous layer that are heat bonded together to provide rigidity while extending over the orbital rim for a smooth transition to bone. The eyelets accommodate 1.0mm or 1.5mm self-drilling screws. When contouring, the implant bends and holds the desired shape without heating.

3D Orbital Floor

Cat#DescriptionABC
4452Small – Right30mm35mm13mm
4453Small – Left30mm35mm13mm
4456Large – Right34mm37.5mm16mm
4457Large – Left34mm37.5mm16mm

Review the Small 3D Orbital Floor Product in 360°.

Review the Large 3D Orbital Floor Product in 360°.

Download the Small and Large 3D Orbital Floor Product Specifications Sheet PDF.

Fan Plate w Template

catalog fan plate w template

Designed for medium to large orbital floor defects. The implant is provided with a sterile, non-porous transparent template made of the same Su-Por high-density polyethylene. The smooth template allows for easy repeated removal during fitting without damage to soft tissues. The outline and contour of the modified template may be used in modification and placement of implant. Screws or sutures can be placed in any desired location. Available with or without heat bonded non-porous membrane layer. The full porous bone-side layer allows for tissue ingrowth. When contouring, the implant bends and holds the desired shape without heating.

Fan Plate w Template

Cat#DescriptionThickness
448740mm Radius – 0.85mm w Template0.85mm
448840mm Radius – 1.5mm w Template1.5mm
448940mm Radius w Membrane – 1.0mm w Template1.0mm

Review the Fan Plate w Template Product in 360°.

Review the Fan Plate w Membrane Product in 360°.

Download the Fan Plate w Template Product Specifications Sheet PDF.

Orbital Floor Plate w Template

catalog orbital floor plate w template

Designed for small to medium orbital floor defects. The implant is provided with a sterile, non-porous transparent template made of the same Su-Por high-density polyethylene. The smooth template allows for easy repeated removal during fitting without damage to soft tissues. The outline and contour of the modified template may be used in the modification and placement of implant. Screws or sutures can be placed in any desired location. Available with or without a heat bonded non-porous membrane layer. The fully porous bone-side layer allows for tissue ingrowth. When contouring, the implant beds and holds the desired shape without heating.

Orbital Floor w Template

Cat#DescriptionABC
4478Small – 0.85 w Template24mm24mm0.85mm
4479Medium – 0.85mm w Template30mm30mm0.85mm
4480Large – 0.85mm w Template35mm35mm0.85mm
4481Small – 1.5mm w Template24mm24mm1.5mm
4482Medium – 1.5mm w Template30mm30mm1.5mm
4483Large 0 1.5mm w Template35mm35mm1.5mm
4484Membrane Small w Template24mm24mm1.0mm
4485Membrane Medium w Template30mm30mm1.0mm
4486Membrane Large w Template35mm35mm1.0mm

Review the Orbital Floor Plate Product in 360°.

Review the Orbital Floor Plate w Membrane Product in 360°.

Download the Orbital Floor Plate w Template Product Specifications Sheet PDF.

Enophthalmos Wedge

catalog enophthalmos wedge

The Enophthalmos Wedge is designed to mimic the shape of the orbital floor and designed to restore the shape of the orbit.

Enophthalmos Wedge

Cat#DescriptionABC
4180Regular – Left24mm33.5mm7mm
4181Regular – Right24mm33.5mm7mm
4182Large – Left28mm40mm7.5mm
4183Large – Right28mm40mm7.5mm

Review the Enophthalmos Wedge Product in 360°.

Download the Enophthalmos Wedge Product Specifications Sheet PDF.

Sphere

catalog sphere

The Su-Por Sphere provides surgeons with an excellent fully porous option for enucleation and evisceration procedures. The Sphere is available in multiple sizes to ensure the best possible fit.

Sphere

Cat#Diameter
402814mm
402916mm
403018mm
403119mm
403220mm
403321mm
403422mm
403523mm

Review the Sphere product in 360°.

Download the Sphere Product Specification Sheet PDF (Under Construction).

Cor-Tec® Sphere

catalog  cor-tec® sphere

The Cor-Tec ® Sphere is an ocular implant with a thin porous layer surrounding a solid core. Full tissue integration is achieved within the thin outer porous layer. U.S. Patent No. US20160038289, European Patent No. 15760319.2.

Cor-tec® Sphere

Cat#Diameter
404216mm
404318mm
404520mm
404722mm

Review the Cor-Tec Sphere product in 360°.

Download the Cor-Tec Sphere Product Specification Sheet PDF.

Quadro-Port Tunnel Orbital Sphere

catalog quadro-port tunnel orbital sphere

The Quadro-Port Tunnel Orbital Sphere is an ocular implant with a smooth anterior surface and pre-fabricated tunnels for sutures to pass through when attaching extraocular muscles.

Quadro-Port Tunnel Orbital Sphere

Cat#Diameter
403616mm
403718mm
403920mm
404122mm

Review the Quadro-Port Tunnel Orbital Sphere product in 360°.

Download the Quadro-Port Tunnel Orbital Sphere Product Specification Sheet PDF.

Conical Orbital Implant (COI)

catalog conical orbital implant (COI)

The Conical Orbital Implant (COI) provides an excellent option for enucleation and evisceration procedures where more volume is required. The conical shape provides more volume posteriorly, approximately equivalent to the volume of a sphere with 2mm larger diameter.

Conical Orbital Implant (COI)

Cat#Dimensions
40543.0 ml Volume – 16mm Diameter
40554.2 ml Volume – 18mm Diameter
40575.6 ml Volume – 20mm Diameter
40587.4 ml Volume – 22mm Diameter

Review the Conical Orbital Implant (COI) product in 360°.

Download the Conical Orbital Implant Product Specification Sheet PDF.

Quadro-Port Tunnel Conical Orbital Implant (COI)

catalog quadro-port tunnel conical orbital implant (COI)

The Quadro-Port Tunnel Conical Orbital Implant (COI), is a conical-shaped ocular implant with a smooth anterior surface and pre-fabricated tunnels for sutures to pass through when attaching extraocular muscles. The conical shape provides more volume posteriorly; approximately equivalent to the volume of a sphere with 2mm larger diameter.

Quadro-Port Tunnel Conical Orbital Implant (COI)

Cat#Dimensions
40593.0 ml Volume – 16mm Diameter
40604.2 ml Volume – 18mm Diameter
40625.6 ml Volume – 20mm Diameter
40637.4 ml Volume – 22mm Diameter

Review the Quadro-Port Tunnel Conical Orbital Implant (COI) product in 360°.

Download the Quadro-Port Tunnel Conical Orbital Implant Product Specification Sheet PDF.

Inferior Orbital Rim

catalog inferior orbital rim

The Inferior Orbital Rim can provide up to 5mm of anterior projection and is designed to be trimmed to meet the needs of the individual patient.

Inferior Orbital Rim

Cat#DescriptionABC
4064Left43mm18mm3.2mm
4065Right43mm18mm3.2mm

Review the Inferior Orbital Rim product in 360°.

Download the Inferior Orbital Rim Implant Product Specification Sheet PDF.

Inferior Medial Orbital Rim

catalog inferior medical orbital rim

The Inferior Medial Orbital Rim is designed to be placed over the inferior orbital rim and extend superiorly and inferiorly medial to the inferior orbital nerve.

Inferior Medial Orbital Rim

Cat#DescriptionABC
4191Left25mm26mm2.5mm
4192Right25mm26mm2.5mm

Review the Inferior Medial Orbital Rim product in 360°.

Download the Inferior Orbital Rim Implant Product Specification Sheet PDF.

Superior Lateral Orbital Rim

catalog superior lateral orbital rim

The Superior Lateral Orbital Rim is designed to augment the lateral and superior orbital rims and is designed to be trimmed to meet the needs of the individual patient.

Superior Lateral Orbital Rim

Cat#DescriptionAB
4251Left33mm45mm
4252Right33mm45mm

Review the Superior Lateral Orbital Rim product in 360°.

Download the Superior Lateral Orbital Rim Implant Product Specification Sheet PDF.

Extended Orbital Rim

catalog extended orbital rim

The Extended Orbital Rim provides surgeons with a large amount of implant to work with, allowing for trimming as required, to fit a large array of orbital rim defects.

Extended Orbital Rim

Cat#DescriptionABC
4066Left47mm40mm6.33mm
4067Right47mm40mm6.33mm

Review the Extended Orbital Rim Left product in 360°.

Review the Extended Orbital Rim Right product in 360°.

Download the Extended Orbital Rim Implant Product Specification Sheet PDF.

Orbital Rim Onlay

catalog orbital rim onlay

The Orbital Rim Onlay is designed to augment the lateral and inferior orbital rims and subtly increase the anterior projection.

Orbital Rim Onlay

Cat#DescriptionABC
4253Left40mm40mm8.45mm
4254Right40mm40mm8.45mm

Review the Orbital Rim Onlay Left product in 360°.

Download the Extended Orbital Rim Implant Product Specification Sheet PDF.

Complete Orbit

catalog complete orbit

The Complete Orbit is designed to replace non-load-bearing bony structures of the orbit. The Complete Orbit may be modified to meet the structural and anatomic needs of the patient for a large variety of defects.

Complete Orbit

Cat#DescriptionABC
4226Left77mm97mm63mm
4227Right77mm97mm63mm

Review the Complete Orbit product in 360°.

Download the Complete Orbit Implant Product Specification Sheet PDF.

Lower Eyelid Spacer

catalog lower eyelid spacer

Designed with Michael A. Burnstine, M.D.

The Lower Eyelid Spacer is an excellent addition to the management of patients with symptomatic paralytic ectropion. The thin, tissue-like profile aids in greater eyelid stability.

The Lower Eyelid Spacer is fully porous to promote tissue ingrowth and facilitate implant stabilization. The implant is placed inferior to the tarsus under no tension. It is also available with a superior strip to provide additional support.

Lower Eyelid Spacer

Cat#DescriptionABC
4436Lower Eyelid Spacer29.5mm9mm0.45mm
4437Strip29.5mm9mm0.45mm

Review the Lower Eyelid Spacer product in 360°.

Review the Lower Eyelid Spacer with Superior Strip product in 360°.

Download the Lower Eyelid Spacer Implant Product Specification Sheet PDF.

Lower Eyelid Spacer-Large

catalog lower eyelid spacer - large

The Lower Eyelid Spacer provide3s internal support in cases of lower eyelid retraction. The superior strip has a smaller pore structure for a smoother edge. The implant may save time and expense of harvesting auricular or hard palate graft material. It is fully porous to promote tissue ingrowth and facilitates implant stability.

Lower Eyelid Spacer – Large

Cat#DescriptionABC
4438Lower Eyelid Spacer w Superior Strip – Large43mm22mm0.45mm

Review the Lower Eyelid Spacer – Large product in 360°.

Download the Lower Eyelid Spacer – Large Implant Product Specification Sheet PDF.

AIRO Implant

catalog airo implant

Designed with Michael A. Burnstine, M.D.

U.S. Patent No. US10687945

The AIRO implant acts to lift and fill the eyebrow. It is comprised of a porous sheet with a microchannel inlay for brow suspension. The implant may be anchored and stabilized deep to the deep temporalis fascia at the hairline for temporal eyebrow elevation.

AIRO Implant

Cat#DescriptionABC
4442Small Qty 110mm5.0mm0.45mm
4443Large Qty 121mm9.5mm0.45mm
4444Small Qty 210mm5.0mm0.45mm
4445Large Qty 221mm9.5mm0.45mm

Review the AIRO Implant Small product in 360°.

Review the AIRO Implant Large product in 360°.

Download the AIRO Implant Large Product Specification Sheet PDF.

Extended Malar

catalog extended malar

The Extended Malar is designed to add more volume to the malar or to rebuild the contour of the bony structure.

Extended Malar

Cat#DescriptionAB
4201Small – Left45mm24mm
4202Small – Right45mm24mm
4203Medium – Left50mm26mm
4204Medium – Right50mm26mm
4205Large – Left55mm27mm
4206Large – Right55mm27mm

Review the Extended Malar product in 360°.

Download the Extended Malar Product Specification Sheet PDF.

SP1 Malar

catalog sp1 malar

The SP1 Malar is designed to subtly augment the malar bone.

SP1 Malar

Cat#DescriptionABC
4082Small – Left50mm19mm3mm
4083Small – Right50mm19mm3mm
4084Regular – Left50mm19mm5mm
4085Regular – Right50mm19mm5mm

Review the SP 1 Malar product in 360°.

Download the Sp 1 Malar Product Specification Sheet PDF.

SP2 Malar

catalog sp2 malar

The SP2 Malar is designed to subtly augment the malar bone.

SP2 Malar

Cat#DescriptionABC
4086Small – Left64mm19mm3mm
4087Small – Right64mm19mm3mm
4197Medium – Left64mm19mm4.5mm
4198Medium – Right64mm19mm4.5mm
4199Large – Left64mm19mm7mm
4200Large – Right64mm19mm7mm

Review the SP 2 Malar product in 360°.

Download the SP 2 Malar Product Specification Sheet PDF.

Midface Contour

catalog midface contour

The Midface Contour is an onlay designed to augment or repair the non-load-bearing bony structures of the midface.

Midface Contour

Cat#DescriptionABC
4255Left60mm40mm4mm
4256Right60mm40mm4mm

Review the Midface Contour product in 360°.

Download the Midface Contour Product Specification Sheet PDF.

Midface Rim

catalog midface rim

The Midface Rim is designed to augment and repair non-load-bearing bony structures of the midface and the inferior orbital rim.

Midface Rim

Cat#DescriptionABC
4189Left47mm28mm3mm
4190Right47mm28mm3mm

Review the Midface Rim product in 360°.

Download the Midface Rim Product Specification Sheet PDF.

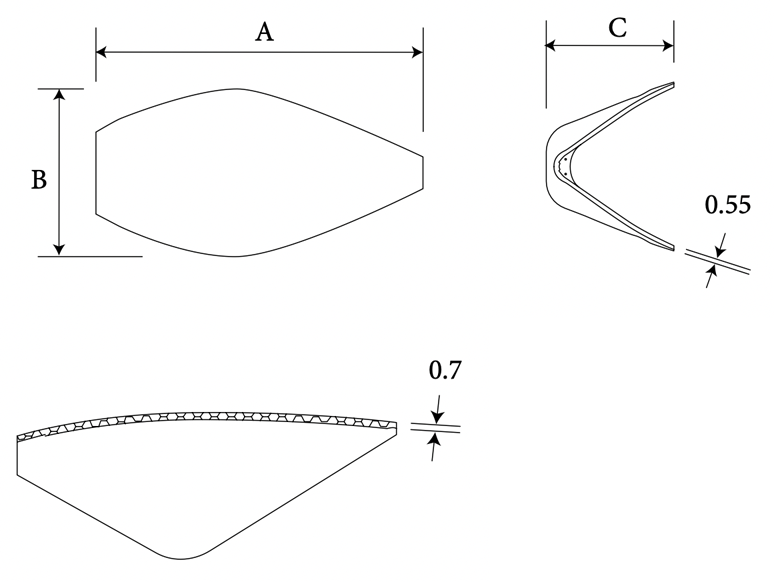

Nasal Dorsal Shell

nasal dorsal shell

The Nasal Dorsal Shell provides surgeons with an excellent option for augmenting or correcting deformities of the nose.

Nasal Dorsal Shell

Cat#ABC
410343mm16mm22mm

Review the Nasal Dorsal Shell Product in 360° (Under Construction).

Download the Nasal Dorsal Shell Product Specification Sheet PDF.

Nasal Shell

nasal shell

Nasal Shell

Cat#DescriptionABC
Regular38mm21mm17mm
4368Insert – Small (Included)30mm9mm4mm
Insert – Large (Included)38mm9mm2.5mm
Large40mm20mm18mm
4369Insert – Small (Included)32mm9mm4mm
Insert – Large (Included)41mm9mm3.1mm

The Nasal Shell is an excellent reconstruction option for correcting nasal deformities. The implant mimics the shape of the nasal bones and upper lateral cartilage. Nasal Shell inserts can be used in dorsal areas where additional augmentation is required. An identical sterile implant is included for use as a template. Sutures may be placed in any desired location.

Review the Nasal Dorsal Shell Product in 360° (Under Construction).

Download the Nasal Shell Product Specification Sheet PDF (Under Construction).

Nasal Batten (2 Per Package)

nasal batten

The Nasal Batten is designed for nasal reconstruction procedures involving the external nasal valve. Nasal Battens are packaged 2 per package.

Nasal Batten

Cat#ABC
424025mm12.5mm0.60mm

Review the Nasal Batten product in 360°.

Download the Nasal Shell Product Specification Sheet PDF.

Nasal Sheet

nasal sheet

The Nasal Sheet provides surgeons with a solution for when nasal tip projection is required. The Nasal Sheet can be used to support the tip by implantation between the medial crura of the alar cartilage.

Nasal Sheet

Cat#ABC
410740mm9mm1.1mm

Review the Nasal Sheet product in 360°.

Download the Nasal Sheet Product Specification Sheet PDF.

Nasal Radix

nasal radix

The Nasal Radix offers surgeons an excellent option to augment a low nasal radix.

Nasal Radix

Cat#ABC
424324mm3mm10mm

Review the Nasal Radix product in 360°.

Download the Nasal Radix Product Specification Sheet PDF.

Nasal Arch

nasal arch

The Nasal Arch can be used effectively to create a nasal onlay where subtle augmentation of the dorsum is required. Care should be taken to place the Nasal Arch appropriately in the dorsum area and to avoid extending the Nasal Arch proximally into the soft nasal cartilage area of the tip. The edge of the Nasal Arch should be feathered to promote a smooth transition from the implant to the patient’s natural contour.

Nasal Arch

Cat#DescriptionABC
4244Small70mm13mm2mm
4245Medium70mm15mm2mm
4246Large70mm17mm2mm

Review the Nasal Arch product in 360°.

Download the Nasal Arch Product Specification Sheet PDF.

Nasal Dorsum

nasal dorsum

Petite Nasal Dorsum Design with Randal Tanh Hoang Pham, M.D., F.S., F.A.C.S.

The Nasal Dorsum is designed to provide subtle augmentation to the dorsum.

Nasal Dorsum

Cat#DescriptionABC
4239Small54mm6mm11mm
4238Large67mm9mm14mm
4313Petite4mm4mm45mm
4314Petite4mm4mm55mm
4315Petite5mm5mm45mm
4316Petite5mm5mm55mm
4317Petite6mm9mm55mm

Review the Nasal Dorsum product in 360°.

Review the Nasal Dorsum Petite product in 360°.

Download the Nasal Dorsum Product Specification Sheet PDF.

Paranasal

paransal

Paranasal implants are designed for augmentation and restoration of the midface in patients who have midfacial deficiency.

Paranasal

Cat#DescriptionABC
4156Small – Left28mm26mm4.5mm
4157Small – Right28mm26mm4.5mm
4158Large – Left30mm28mm7mm
4159Large – Right30mm28mm7mm

Review the Paranasal product in 360°.

Download the Nasal Dorsum Product Specification Sheet PDF.

Contoured Mandibular Angle

contoured mandibular angle

The Contoured Mandibular Angle is designed to subtly augment the mandible.

Contoured Mandibular Angle

Cat#DescriptionABC
4303Left59mm29mm7mm
4304Right59mm29mm7mm

Review the Contoured Mandibular Angle product in 360°.

Download the Contoured Mandibular Angle Product Specification Sheet PDF.

SP Mandibular Angle

sp mandibular angle

The SP Mandibular Angle is designed to conform to the posterior and inferior borders of the mandibular angle.

SP Mandibular Angle

Cat#DescriptionABC
4150Small – Left65mm35mm3mm
4151Small – Right65mm35mm3mm
4152Medium – Left65mm35mm7mm
4153Medium – Right65mm35mm7mm
4154Large – Left65mm35mm11mm
4155Large – Left65mm35mm11mm

Review the SP Mandibular Angle product in 360°.

Download the SP Mandibular Angle Product Specification Sheet PDF.

Lateral Augmentation Mandible

lateral augmentation mandible

The Lateral Augmentation Mandible is designed to subtly augment the lateral projection of the mandible.

Lateral Augmentation Mandible

Cat#DescriptionABC
4305Regular – Left47mm38mm3mm
4306Regular – Right47mm38mm3mm
4307Large – Left57mm40mm4mm
4308Large – Right57mm40mm4mm

Review the Lateral Augmentation Mandible product in 360°.

Download the Lateral Augmentation Mandible Product Specification Sheet PDF.

Ramus of the Mandible

ramus of the mandible

Ramus of the Mandible

Cat#DescriptionABC
4095Large 5mm – Left79mm32mm5mm
4096Large 5mm – Right79mm32mm5mm

The Ramus of the Mandible is designed for augmentation of the ramus of the mandible

Review the Ramus of the Mandible product in 360°.

Download the Ramus of the Mandible Product Specification Sheet PDF.

Geniomandibular Groove

geniomandibular groove

The Geniomandibular Groove is designed to augment the geniomandibular groove. The implant is divided medially for separate insertion of the left and right pieces.

Geniomandibular Groove

Cat#ABC
430245mm41mm4mm

Review the Geniomandibular Groove product in 360°.

Download the Geniomandivular Groove Product Specification Sheet PDF.

Contoured Two-Piece Chin

contoured two-piece chin

The Contoured Two-Piece Chin is designed with a gradual taper and concave posterior surface to provide an excellent anatomical fit to the bony anatomy.

Contoured Two-Piece Chin

Cat#DescriptionABC
4088Small72mm42mm3mm
4089Medium74mm42mm5mm
4090Large78mm50mm7mm
4091Extra Large80mm55mm9mm

Review the Contoured Two-Piece Chin product in 360°.

Download the Contoured Two-Piece Chin Product Specification Sheet PDF.

Two-Piece Chin

two-piece chin

The Two-Piece Chin is designed to allow for easy insertion and placement of the implant. The surgeon can then attach the components together for proper alignment.

Two-Piece Chin

Cat#DescriptionABC
4092Small56mm33mm5mm
4093Medium56mm36mm7mm
4094Large57mm38mm9mm

Review the Two-Piece Chin product in 360°.

Download the Two-Piece Chin Product Specification Sheet PDF.

Button Chin

button chin

The Button Chin is designed for subtle augmentation to the medial anterior point of the chin. Having multiple sizes allows the surgeon to select the most natural looking configuration.

Button Chin

Cat#DescriptionABC
4265Small40mm25mm4mm
4266Medium47.5mm37.5mm5.5mm
4267Large48.5mm38mm7mm

Review the Button Chin product in 360°.

Review the Button Chin (Small) product in 360°.

Download the Button Chin Product Specification Sheet PDF.

Round Extended Chin

round extended chin

The Round Extended Chin is designed to provide tri-dimensional projection (anterior, lateral, and inferior).

Round Extended Chin

Cat#DescriptionABC
4259Small45mm47mm3mm
4260Medium45mm47mm5mm
4261Large45mm47mm7mm

Review the Round Extended Chin product in 360°.

Download the Round Extended Chin Product Specification Sheet PDF.

Square Extended Chin

square extended chin

The Square Extended Chin is designed to provide tri-dimensional projection (anterior, lateral, and inferior).

Square Extended Chin

Cat#DescriptionABC
4262Small45mm47mm3mm
4263Medium45mm47mm5mm
4264Large45mm47mm7mm

Review the Square Extended Chin product in 360°.

Download the Square Extended Chin Product Specification Sheet PDF.

Two-Piece Auricular Implant

two-piece auricular implant

The design of the Su-Por Auricular implants allows surgeons to custom shape the height and projection of the helical rim to match the contralateral ear of the patient. The porous material provides a structural base for a temporal parietal fascia flap and skin grafts. The success of the implant depends on the technique of the surgeon; the porous structure requires a vascular tissue flap such as a temporal parietal fascia flap and skin graft, to prevent late exposure of the implant.

Two-Piece Auricular Implant

Cat#DescriptionAB
4099Ear Base – Left32mm63mm
4100Ear Base – Right32mm63mm
4101Helical Rim – Rim39mm63mm
4102Helical Rim – Right39mm63mm

Review the Two-Piece Auricular Ear Base product in 360°.

Review the Two-Piece Auricular Implant Ear Base – Helical Rim product in 360°.

Download the Two-Piece Auricular Ear Implant Product Specification Sheet PDF.

Ear Wedge

ear wedge

The Ear Wedge is designed to enhance the projection of a surgically reconstructed ear. The Ear Wedge can be trimmed to match the projection of the contralateral ear.

Ear Wedge

Cat#DescriptionABC
4292Right15mm44mm11mm
4293Left15mm44mm11mm
4294Thin – Left15mm44mm11mm
4295Thin – Right15mm44mm11mm

Review the Ear Wedge product in 360°.

Review the Ear Wedge Thin product in 360°.

Download the Ear Wedge Product Specification Sheet PDF.

Mastoid

mastoid

The Mastoid provides surgeons with an excellent option for repair of mastoid defects. The regular Mastoid is available in left and right configurations while the small Mastoid provides a universal fit.

Mastoid

Cat#DescriptionABC
4132Small36mm45mm1.5mm
4124Left56mm53.3mm1.5mm
4125Right56mm53.3mm1.5mm

Review the Mastoid product in 360°.

Review the Mastoid Small product in 360°.

Download the Mastoid Specification Sheet PDF.

Pterional

pterional

The Pterional is designed to correct temporal hollowing in patients who have had surgery involving the pterional approach to the brain. The implant is placed deep to the temporalis during closure.

Pterional

Cat#DescriptionABC
4122Left6mm43mm44mm
4123Right6mm43mm44mm

Review the Petrional product in 360°.

Download the Pterional Specification Sheet PDF.

Temporal Flex Grid

temporal flex grid

The Temporal Flex Grid is designed to augment deficient soft tissue in the temporal region. The Temporal Flex Grid has a thin contoured temporal surface designed for a proper anatomical fit and a more natural result.

Temporal Flex Grid

Cat#DescriptionABC
4110Small – Left61mm78mm18mm
4111Small – Right61mm78mm18mm
4112Medium – Left74mm93mm20mm
4113Medium – Right74mm93mm20mm
4114Large – Left82mm105mm20mm
4115Large – Right82mm105mm20mm
4363SP – Small70mm70mm10mm
4364SP – Medium88mm86mm15mm
4365SP – Large98mm95mm18mm

Review the Temporal Flex Grid product in 360°.

Review the SP Temporal Flex Grid product in 360°.

Download the Temporal Flex Grid Specification Sheet PDF.

Burr Hole Cover

burr hole cover

The Burr Hole Cover is designed to fit into and over holes made by a cranial perforator. The large Burr Hole Cover has a 14mm diameter with a stem that is easily modified. The small Burr Hole Cover is designed for 5mm diameter holes.

Burr Hole Cover

Cat#DescriptionABC
4130Small15mm3mm5mm
4131Large29mm7mm14mm

Review the Burr Hole Cover Small product in 360°.

Review the Burr Hole Cover Large product in 360°.

Download the Burr Hole Cover Specification Sheet PDF.

Sellar Floor

sellar floor

The Sellar Floor is designed to repair the sellar floor. It is available in two sizes and configurations. The larger Sellar Floor is designed with three small tabs to facilitate handling and placement while the regular has a single tab. The Large Sellar Floor also has a membrane layer to aid in preventing tissue ingrowth.

Sellar Floor

Cat#DescriptionABC
4126Regular20mm20mm2.5mm
4129Large + Membrane40mm40mm2.5mm

Review the Sellar Floor product in 360°.

Review the Sellar Floor Large product in 360°.

Download the Sellar Floor Specification Sheet PDF.

Cranial Flex Grid

flex grid

The Cranial Flex Grid is designed to fill full thickness cranial defects as an option to calvarial bone grafts. The Cranial Flex Grid has a design that is strong and flexible and allows for the implant to be cut to the desired shape.

Cranial Flex Grid

Cat#ABC
410897mm106mm6mm

Review the Cranial Flex Grid product in 360°.

Download the Cranial Flex Grid Specification Sheet PDF.

Cranial Hemisphere

cranial hemisphere

The Cranial Hemisphere is designed to provide surgeons with a reconstructive option for large cranial defects. The Cranial Hemisphere provides alternatives to customized implants, grafts, and other implant materials.

Cranial Hemisphere

Cat#DescriptionABC
4116Left124mm170mm4.5mm
4117Right124mm170mm4.5mm
4118Left124mm170mm6mm
4119Right124mm170mm6mm

Review the Cranial Hemisphere product in 360°.

Download the Cranial Hemisphere Specification Sheet PDF.

Cranial Dome

cranial dome

The Cranial Dome is designed to provide surgeons with a reconstructive option for large cranial defects. The Cranial Dome approximates the contour of the superior 1/3 of the cranium and is available in two thicknesses.

Cranial Dome

Cat#ABC
4120150mm180mm4mm
4121150mm180mm6mm

Review the Cranial Dome product in 360°.

Download the Cranial Dome Specification Sheet PDF.

Occipital

occipital

Reconstructive option for large cranial defects. Provides an alternative to customized implants, grafts, and other implant materials. Approximates shape of the occipital region while allowing a surgeon to bend and trim the implant to meet the needs of the individual patient.

Occipital

Cat#ABC
4439114mm101mm6mm

Review the Occipital product in 360°.

Download the Occipital Specification Sheet PDF.

Capocelli Plate

Capocelli plate

Designed with Anthony L. Capocelli, M.D.

Restores cranium following cranial decompression procedures. Screws or sutures can be placed in any desired location. Full porous material for tissue ingrowth. Implant bends and holds desired shape without heating. Easy to trim with scissors or scalpel.

Capocelli Plate

Cat#DescriptionABC
4461Small43mm36mm3mm
4462Medium48mm40mm3mm
4463Large54mm45mm3mm

Review the Capocelli Plate product in 360°.

Download the Capocelli Plate Specification Sheet PDF.

Orbito-Zygomatic

Orbito-Zygomatic

The Orbito-Zygomatic is an excellent option for restoration of bony surfaces following an orbito-zygomatic craniotomy.

Orbito-Zygomatic

Cat#DescriptionABC
4072Left33mm38mm0.8mm
4073Right33mm38mm0.8mm

Review the Orbito-Zygomatic product in 360°.

Download the Orbito-Zygomatic Specification Sheet PDF.
