Single Channel Sheets

The Single-Channel Sheet is for significant orbital floor and wall trauma. The addition of a single rigid fixation plate provides increased structural support. It is available with or without heat bonded non-porous membrane layer. Its flat posterior side can be rested along the posterior border of the defect. A fully porous bone-side layer promotes tissue ingrowth. As with any of our implants, the Single Channel Sheet bends and holds your desired shape without heating, and screws and sutures can be placed in any desired location. It is easy to trim with scissors or scalpel, and comes individually packaged, MR Safe, and sterile, with a 5 year shelf life.

See the specifications information below.

Download the Single Channel Sheet Specification Sheet PDF.

Go back to the main Catalog.

Contact us with any questions.

Add to Quote

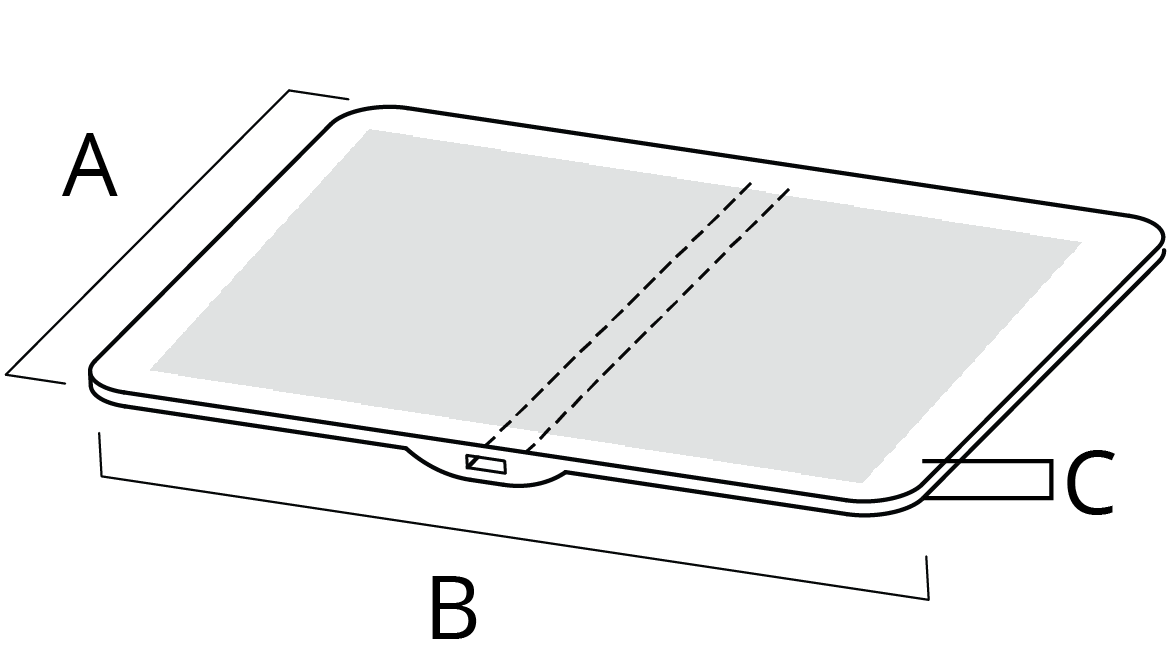

4297 Single Channel Sheet line diagram

Microplate Single Channel Sheets – Dimensions

Cat# Description A B C
4297 Microplate Single Channel Sheet 38mm 50mm 2.3mm
4296 Membrane Microplate Single Channel Sheet 38mm 50mm 2.3mm


Additional information

Sheet Type

4297: Microplate Single Channel Sheet, 4296: Membrane Microplate Single Channel Sheet
