Lateral Augmentation Mandible
Lateral Augmentation Mandible Product Description

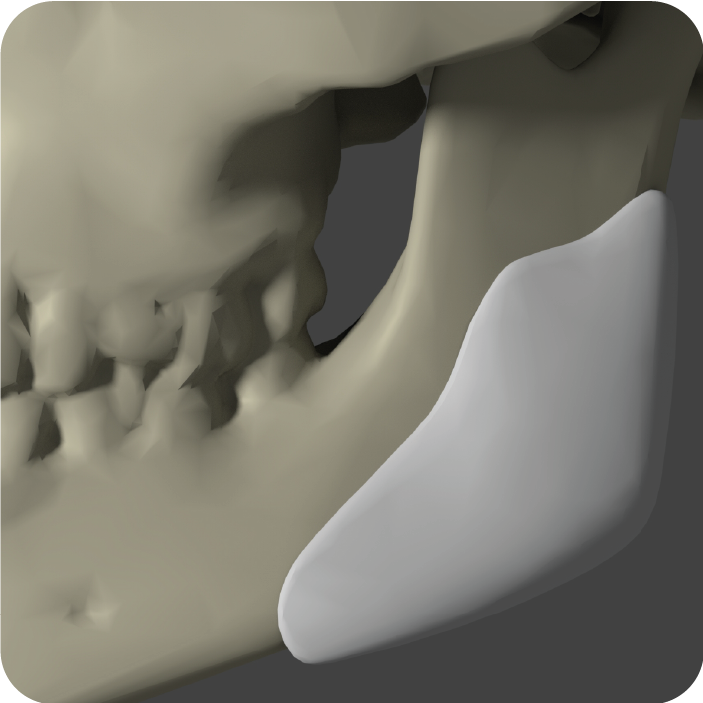

The Lateral Augmentation Mandible is designed to subtly augment the lateral projection of the mandible.

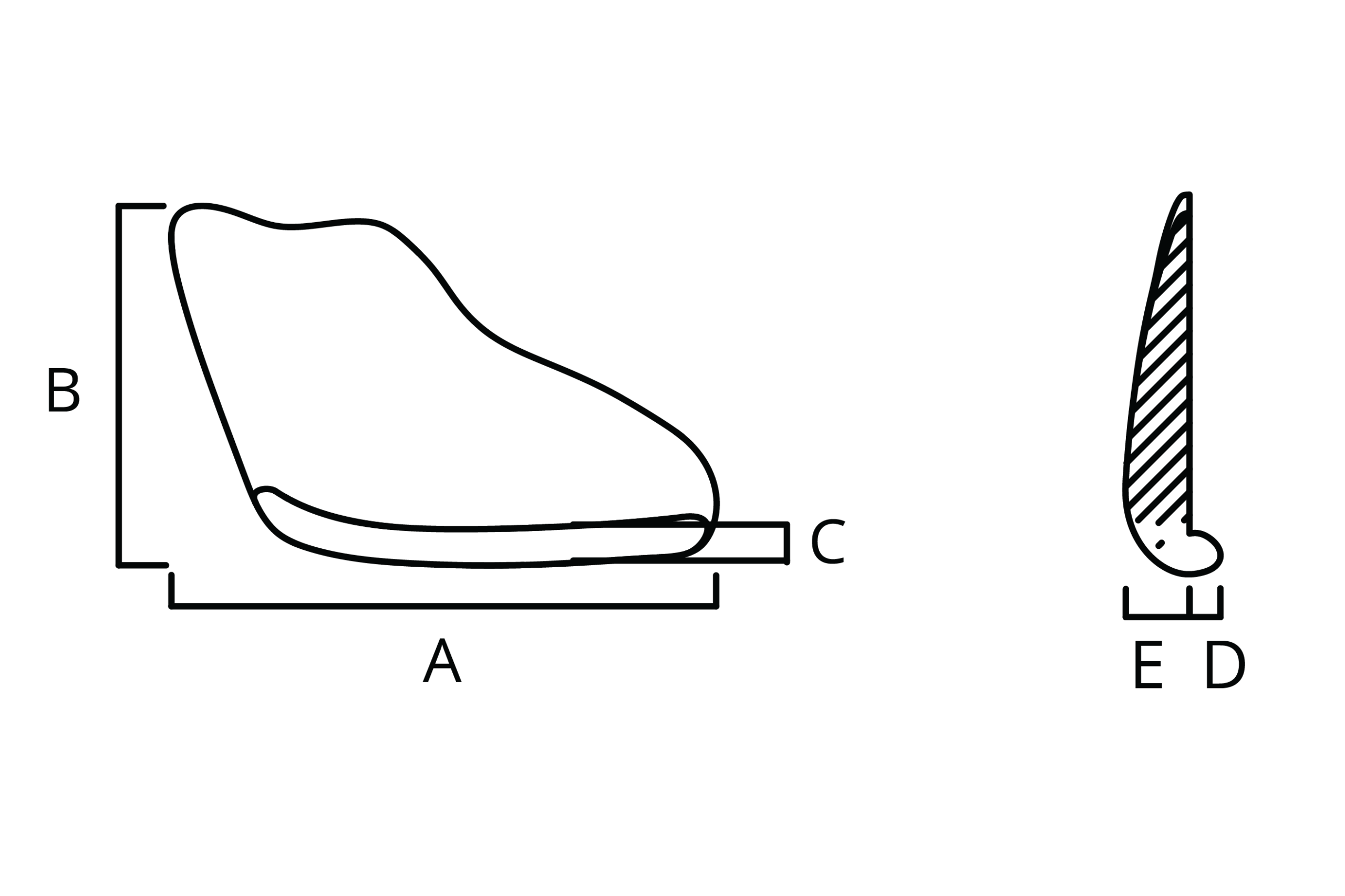

Lateral Augmentation Mandible Implant Dimensions
| Cat# | Description | A | B | C | D | E |
|---|---|---|---|---|---|---|
| 4305 | Regular - Left | 47mm | 38mm | 3mm | 3mm | 6.5mm |
| 4306 | Regular - Right | 47mm | 38mm | 3mm | 3mm | 6.5mm |
| 4307 | Large - Left | 57mm | 40mm | 4mm | 3mm | 10mm |
| 4308 | Large - Right | 57mm | 40mm | 4mm | 3mm | 10mm |
