This catalog details our product line of Su-Por porous polyethylene surgical implants. Please contact us with any questions.


SU-POR Surgical implants in block, sheet, and anatomical shapes are intended for non-weight-bearing applications of craniofacial reconstruction surgery and repair of craniofacial trauma. SU-POR Surgical Implants are also intended for the augmentation or restoration of contour in the craniomaxillofacial skeleton.
Overview
SU-POR Surgical Implants are used in the reconstruction and augmentation of the craniomaxillofacial area. Su-Por is made from pure high-density polyethylene (HDPE). When processed, Su-Por becomes a porous graft that allows tissue integration. This top-performing material has been supported with clinical data since 1985. Su-Por graft material has superior suturability, is easy to cut, and holds its shape when bent to meet patient needs.
Neurosurgery
- Craniotomy
- Craniectomy
- Approach Closure
- Sella Turcica Closure
Otolaryngology
- Microtia Repair
- Porous HDPE
- Rib Graft
- Septoplasty
- Rhinoplasty
- Mentoplasty
- Skull Base Closures
- Cleft Lip
Oral Maxillofacial
- Mentoplasty
- Mandibular Augmentation
- Orbital Floor Repair
Facial Plastics
- Orbital Floor Repair
- Rhinoplasty
- Microtia Repair
- Porous HDPE
- Rib Graft
- Brow Lift
- Mentoplasty
- Cleft Lip
Ophthalmology
- Enucleation
- Evisceration
- Brow Lift
- Enophthalmos
- Lid Retraction
- Lower Eyelid Graft

Features and Benefits
Integration
- The interconnecting open pore structure of Su-Por Surgical Implants allows for tissue ingrowth.
Modification
- Su-Por Surgical Implants may be carved using a scalpel, a burr, or cut with scissors. Contour adjustments may be made intraoperatively.
Sterilization
- All Su-Por Surgical Implants are provided STERILE. Su-Por Patient-Specific Implants are provided with two STERILE implants, a non-sterile sample, and a medical model of the defect for surgical planning within 8 business days.
Fixation
- Fixation of Such -Por Surgical Implants may be achieved using sutures, surgical fixation screws, or K-wire. Fixation screws may be placed directly through the implant without pre-drilled holes.

Specialty Legend

Neurosurgery

Ophthalmology

Oral Maxillofacial

Otolaryngology

Facial Plastics
Block


The Su-Por Block gives surgeons an excellent option for craniofacial reconstruction and augmentation. Su-Por Block implants are available in multiple sizes and thicknesses to ensure that the surgeon has the proper amount of biomaterial for almost any possible contour or shape.
Block Dimensions
Cat# | A | B | C |
---|---|---|---|
4019 | 13mm | 38mm | 3mm |
4020 | 29mm | 50mm | 3mm |
4021 | 38mm | 63mm | 3mm |
4022 | 13mm | 38mm | 6mm |
4023 | 25mm | 50mm | 6mm |
4024 | 38mm | 36mm | 6mm |
4025 | 13mm | 38mm | 9.5mm |
4026 | 25mm | 50mm | 9.5mm |
4027 | 38mm | 63mm | 9.5mm |
Review the Block product in 360°.
Download the Block Product Specification PDF.
Sheets


The Su-Por Sheet provides surgeons with an excellent option for craniofacial reconstruction and augmentation.
Sheets Dimensions
Cat# | A | B | C |
---|---|---|---|
4001 | 38mm | 50mm | 0.25mm |
4002 | 50mm | 76mm | 0.25mm |
4003 | 38mm | 50mm | 0.35mm |
4004 | 50mm | 76mm | 0.35mm |
4005 | 30mm | 50mm | 0.40mm |
4006 | 38mm | 50mm | 0.45mm |
4007 | 50mm | 76mm | 0.45mm |
4008 | 38mm | 50mm | 0.85mm |
4009 | 50mm | 76mm | 0.85mm |
4012 | 38mm | 50mm | 1.5mm |
4013 | 50mm | 76mm | 1.5mm |
4015 | 38mm | 50mm | 3.0mm |
Review the Sheets product in 360°.
Download the Sheets Product Specification PDF.
Membrane Sheet


The Su-Por Membrane Sheet is designed to selectively prevent tissue attachment to one side of the implant surface. The membrane layer is comprised of solid polyethylene and porous layers that are heat bonded without adhesives or additives. Tissue integration occurs in the porous layer just as with the fully porous Sheet implant. U.S. Patent No. US09724198.
Membrane Sheet Dimensions
Cat# | A | B | C |
---|---|---|---|
4231 | 38mm | 50mm | 0.60mm |
4016 | 38mm | 50mm | 1.0mm |
4241 | 38mm | 50mm | 1.6mm |
4017 | 50mm | 76mm | 1.0mm |
4018 | 50mm | 76mm | 1.6mm |
Review the Membrane Sheet Product in 360°.
Download the Membrane Product Specifications Sheet PDF.
Flex Sheet


The Flex Sheet is designed for small to medium sized cranial defects and deformities. It has a smooth exterior surface and a series of pedicles on the interior surface that are designed to provide volume and flexibility. The Flex Sheet is available with and without a membrane layer, allowing the surgeon to selectively prevent tissue ingrowth if desired.
Flex Sheet Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4109 | Regular | 56mm | 91mm | 4.5mm |
4134 | Regular + Membrane | 56mm | 91mm | 4.5mm |
Review the Flex Sheet Product in 360°.
Download the Flex Sheet Product Specifications Sheet PDF.
Miniplate Channel Sheet and Microplate Channel Sheet


The Miniplate Channel Sheet and Microplate Channel Sheets are designed for repair of significant orbital floor and wall trauma where the addition of a rigid fixation plate provides structural support.
Miniplate Channel Sheet Dimensions
Cat# | A | B | C | Channel Width |
---|---|---|---|---|
4298 | 40mm | 52mm | 2.3mm | 4.0mm |
Microplate Channel Sheet Dimensions
Cat# | A | B | C | Channel Width |
---|---|---|---|---|
4299 | 40mm | 52mm | 2.3mm | 2.3mm |
Review the Microplate Sheet and Miniplate Sheet Product in 360°.
Download the Microplate Channel Sheet and Miniplate Channel Sheet Product Specifications Sheet PDF.
Membrane Miniplate Channel Sheet and Membrane Microplate Channel Sheet


The Membrane Miniplate Channel Sheet and the Membrane Mcroplate Channel Sheets are designed for repair of significant orbital floor and wall trauma where the addition of a rigid fixation plate provides structural support. The membrane layer acts to inhibit tissue ingrowth.
Membrane Miniplate Channel Sheet Dimensions
Cat# | A | B | C | Channel Width |
---|---|---|---|---|
4300 | 40mm | 52mm | 2.3mm | 4.0mm |
Membrane Microplate Channel Sheet
Cat# | A | B | C | Channel Width |
---|---|---|---|---|
4301 | 40mm | 52mm | 2.3mm | 2.3mm |
Review the Membrane Microplate and Miniplate Channel Product in 360°.
Flor-Tec™ Composite Orbital Floor


The Su-Por Flor-Tech™ Composite Orbital Floor is a composite structure of Su-Por biomaterial It is comprised of a nonporous sheet and a leading porous strip. Non-porous high-density polyethylene acts to prevent tissue ingrowth while the porous strip may help to facilitate implant attachment.
Flor-Tec™ Composite Orbital Floor Dimensions
Cat# | A | B | C |
---|---|---|---|
4233 | 38mm | 50mm | 0.3mm |
4232 | 38mm | 50mm | 0.4mm |
4234 | 38mm | 50mm | 0.5mm |
Review the Flor-Tec™ Composite Orbital Floor Product in 360°.
Download the Flor-Tec™ Composite Orbital Floor Product Specifications Sheet PDF.
3D Orbital Floor


The 3D Orbital Floor is an off-the-shelf anatomic design based on CD scan data. The structure is comprised of a porous bone side and a non-porous layer that are heat bonded together to provide rigidity while extending over the orbital rim for a smooth transition to bone. The eyelets accommodate 1.0mm or 1.5mm self-drilling screws. When contouring, the implant bends and holds the desired shape without heating.
3D Orbital Floor Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4452 | Small – Right | 30mm | 35mm | 13mm |
4453 | Small – Left | 30mm | 35mm | 13mm |
4456 | Large – Right | 34mm | 37.5mm | 16mm |
4457 | Large – Left | 34mm | 37.5mm | 16mm |
Review the Small 3D Orbital Floor Product in 360°.
Review the Large 3D Orbital Floor Product in 360°.
Download the Small and Large 3D Orbital Floor Product Specifications Sheet PDF.
Fan Plate w Template



Designed for medium to large orbital floor defects. The implant is provided with a sterile, non-porous transparent template made of the same Su-Por high-density polyethylene. The smooth template allows for easy repeated removal during fitting without damage to soft tissues. The outline and contour of the modified template may be used in modification and placement of implant. Screws or sutures can be placed in any desired location. Available with or without heat bonded non-porous membrane layer. The full porous bone-side layer allows for tissue ingrowth. When contouring, the implant bends and holds the desired shape without heating.
Fan Plate w Template Dimensions
Cat# | Description | Thickness |
---|---|---|
4487 | 40mm Radius – 0.85mm w Template | 0.85mm |
4488 | 40mm Radius – 1.5mm w Template | 1.5mm |
4489 | 40mm Radius w Membrane – 1.0mm w Template | 1.0mm |
Review the Fan Plate w Template Product in 360°.
Review the Fan Plate w Membrane Product in 360°.
Download the Fan Plate w Template Product Specifications Sheet PDF.
Orbital Floor Plate w Template



Designed for small to medium orbital floor defects. The implant is provided with a sterile, non-porous transparent template made of the same Su-Por high-density polyethylene. The smooth template allows for easy repeated removal during fitting without damage to soft tissues. The outline and contour of the modified template may be used in the modification and placement of implant. Screws or sutures can be placed in any desired location. Available with or without a heat bonded non-porous membrane layer. The fully porous bone-side layer allows for tissue ingrowth. When contouring, the implant beds and holds the desired shape without heating.

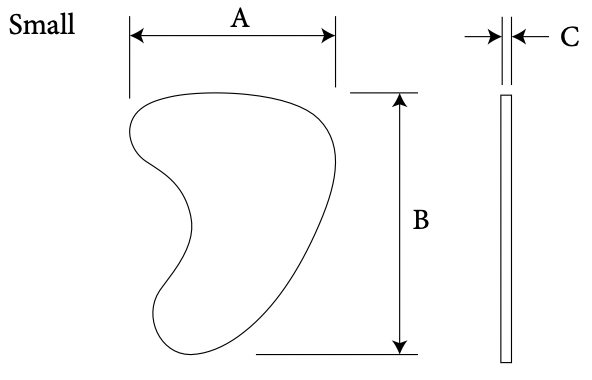

Orbital Floor w Template Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4478 | Small – 0.85 w Template | 24mm | 24mm | 0.85mm |
4479 | Medium – 0.85mm w Template | 30mm | 30mm | 0.85mm |
4480 | Large – 0.85mm w Template | 35mm | 35mm | 0.85mm |
4481 | Small – 1.5mm w Template | 24mm | 24mm | 1.5mm |
4482 | Medium – 1.5mm w Template | 30mm | 30mm | 1.5mm |
4483 | Large 0 1.5mm w Template | 35mm | 35mm | 1.5mm |
4484 | Membrane Small w Template | 24mm | 24mm | 1.0mm |
4485 | Membrane Medium w Template | 30mm | 30mm | 1.0mm |
4486 | Membrane Large w Template | 35mm | 35mm | 1.0mm |
Review the Orbital Floor Plate Product in 360°.
Review the Orbital Floor Plate w Membrane Product in 360°.
Download the Orbital Floor Plate w Template Product Specifications Sheet PDF.
Enophthalmos Wedge


The Enophthalmos Wedge is designed to mimic the shape of the orbital floor and designed to restore the shape of the orbit.
Enophthalmos Wedge Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4180 | Regular – Left | 24mm | 33.5mm | 7mm |
4181 | Regular – Right | 24mm | 33.5mm | 7mm |
4182 | Large – Left | 28mm | 40mm | 7.5mm |
4183 | Large – Right | 28mm | 40mm | 7.5mm |
Review the Enophthalmos Wedge Product in 360°.
Download the Enophthalmos Wedge Product Specifications Sheet PDF.
Sphere


The Su-Por Sphere provides surgeons with an excellent fully porous option for enucleation and evisceration procedures. The Sphere is available in multiple sizes to ensure the best possible fit.
Sphere Dimensions
Cat# | Diameter |
---|---|
4028 | 14mm |
4029 | 16mm |
4030 | 18mm |
4031 | 19mm |
4032 | 20mm |
4033 | 21mm |
4034 | 22mm |
4035 | 23mm |
Review the Sphere product in 360°.
Download the Sphere Product Specification PDF.
Cor-Tec® Sphere


The Cor-Tec ® Sphere is an ocular implant with a thin porous layer surrounding a solid core. Full tissue integration is achieved within the thin outer porous layer. U.S. Patent No. US20160038289, European Patent No. 15760319.2.
Cor-tec® Sphere Dimensions
Cat# | Diameter |
---|---|
4042 | 16mm |
4043 | 18mm |
4045 | 20mm |
4047 | 22mm |
Review the Cor-Tec Sphere product in 360°.
Download the Cor-Tec Sphere Product Specification Sheet PDF.
Quadro-Port Tunnel Orbital Sphere


The Quadro-Port Tunnel Orbital Sphere is an ocular implant with a smooth anterior surface and pre-fabricated tunnels for sutures to pass through when attaching extraocular muscles.
Quadro-Port Tunnel Orbital Sphere Dimensions
Cat# | Diameter |
---|---|
4036 | 16mm |
4037 | 18mm |
4039 | 20mm |
4041 | 22mm |
Review the Quadro-Port Tunnel Orbital Sphere product in 360°.
Download the Quadro-Port Tunnel Orbital Sphere Product Specification Sheet PDF.
Conical Orbital Implant (COI)


The Conical Orbital Implant (COI) provides an excellent option for enucleation and evisceration procedures where more volume is required. The conical shape provides more volume posteriorly, approximately equivalent to the volume of a sphere with 2mm larger diameter.
Conical Orbital Implant (COI) Dimensions
Cat# | Dimensions |
---|---|
4054 | 3.0 ml Volume – 16mm Diameter |
4055 | 4.2 ml Volume – 18mm Diameter |
4057 | 5.6 ml Volume – 20mm Diameter |
4058 | 7.4 ml Volume – 22mm Diameter |
Review the Conical Orbital Implant (COI) product in 360°.
Download the Conical Orbital Implant Product Specification Sheet PDF.
Quadro-Port Tunnel Conical Orbital Implant (COI)


The Quadro-Port Tunnel Conical Orbital Implant (COI), is a conical-shaped ocular implant with a smooth anterior surface and pre-fabricated tunnels for sutures to pass through when attaching extraocular muscles. The conical shape provides more volume posteriorly; approximately equivalent to the volume of a sphere with 2mm larger diameter.
Quadro-Port Tunnel Conical Orbital Implant (COI) Dimensions
Cat# | Dimensions |
---|---|
4059 | 3.0 ml Volume – 16mm Diameter |
4060 | 4.2 ml Volume – 18mm Diameter |
4062 | 5.6 ml Volume – 20mm Diameter |
4063 | 7.4 ml Volume – 22mm Diameter |
Review the Quadro-Port Tunnel Conical Orbital Implant (COI) product in 360°.
Download the Quadro-Port Tunnel Conical Orbital Implant Product Specification Sheet PDF.
Inferior Orbital Rim


The Inferior Orbital Rim can provide up to 5mm of anterior projection and is designed to be trimmed to meet the needs of the individual patient.
Inferior Orbital Rim Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4064 | Left | 43mm | 18mm | 3.2mm |
4065 | Right | 43mm | 18mm | 3.2mm |
Review the Inferior Orbital Rim product in 360°.
Download the Inferior Orbital Rim Implant Product Specification Sheet PDF.
Inferior Medial Orbital Rim


The Inferior Medial Orbital Rim is designed to be placed over the inferior orbital rim and extend superiorly and inferiorly medial to the inferior orbital nerve.
Inferior Medial Orbital Rim Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4191 | Left | 25mm | 26mm | 2.5mm |
4192 | Right | 25mm | 26mm | 2.5mm |
Review the Inferior Medial Orbital Rim product in 360°.
Download the Inferior Orbital Rim Implant Product Specification Sheet PDF.
Superior Lateral Orbital Rim


The Superior Lateral Orbital Rim is designed to augment the lateral and superior orbital rims and is designed to be trimmed to meet the needs of the individual patient.
Superior Lateral Orbital Rim Dimensions
Cat# | Description | A | B |
---|---|---|---|
4251 | Left | 33mm | 45mm |
4252 | Right | 33mm | 45mm |
Review the Superior Lateral Orbital Rim product in 360°.
Download the Superior Lateral Orbital Rim Implant Product Specification Sheet PDF.
Extended Orbital Rim


The Extended Orbital Rim provides surgeons with a large amount of implant to work with, allowing for trimming as required, to fit a large array of orbital rim defects.
Extended Orbital Rim Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4066 | Left | 47mm | 40mm | 6.33mm |
4067 | Right | 47mm | 40mm | 6.33mm |
Review the Extended Orbital Rim Left product in 360°.
Review the Extended Orbital Rim Right product in 360°.
Download the Extended Orbital Rim Implant Product Specification Sheet PDF.
Orbital Rim Onlay


The Orbital Rim Onlay is designed to augment the lateral and inferior orbital rims and subtly increase the anterior projection.
Orbital Rim Onlay Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4253 | Left | 40mm | 40mm | 8.45mm |
4254 | Right | 40mm | 40mm | 8.45mm |
Review the Orbital Rim Onlay Left product in 360°.
Download the Extended Orbital Rim Implant Product Specification Sheet PDF.
Complete Orbit


The Complete Orbit is designed to replace non-load-bearing bony structures of the orbit. The Complete Orbit may be modified to meet the structural and anatomic needs of the patient for a large variety of defects.
Complete Orbit Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4226 | Left | 77mm | 97mm | 63mm |
4227 | Right | 77mm | 97mm | 63mm |
Review the Complete Orbit product in 360°.
Download the Complete Orbit Implant Product Specification Sheet PDF.
Lower Eyelid Spacer



Designed with Michael A. Burnstine, M.D.
The Lower Eyelid Spacer is an excellent addition to the management of patients with symptomatic paralytic ectropion. The thin, tissue-like profile aids in greater eyelid stability.
The Lower Eyelid Spacer is fully porous to promote tissue ingrowth and facilitate implant stabilization. The implant is placed inferior to the tarsus under no tension. It is also available with a superior strip to provide additional support.
Lower Eyelid Spacer Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4436 | Lower Eyelid Spacer | 29.5mm | 9mm | 0.45mm |
4437 | Strip | 29.5mm | 9mm | 0.45mm |
Review the Lower Eyelid Spacer product in 360°.
Review the Lower Eyelid Spacer with Superior Strip product in 360°.
Download the Lower Eyelid Spacer Implant Product Specification Sheet PDF.
Lower Eyelid Spacer-Large


The Lower Eyelid Spacer provides internal support in cases of lower eyelid retraction. The superior strip has a smaller pore structure for a smoother edge. The implant may save time and expense of harvesting auricular or hard palate graft material. It is fully porous to promote tissue ingrowth and facilitates implant stability.
Lower Eyelid Spacer – Large Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4438 | Lower Eyelid Spacer w Superior Strip – Large | 43mm | 22mm | 0.45mm |
Review the Lower Eyelid Spacer – Large product in 360°.
Download the Lower Eyelid Spacer – Large Implant Product Specification Sheet PDF.
AIRO Implant


Designed with Michael A. Burnstine, M.D.
U.S. Patent No. US10687945
The AIRO implant acts to lift and fill the eyebrow. It is comprised of a porous sheet with a microchannel inlay for brow suspension. The implant may be anchored and stabilized deep to the deep temporalis fascia at the hairline for temporal eyebrow elevation.
AIRO Implant Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4442 | Small Qty 1 | 10mm | 5.0mm | 0.45mm |
4443 | Large Qty 1 | 21mm | 9.5mm | 0.45mm |
4444 | Small Qty 2 | 10mm | 5.0mm | 0.45mm |
4445 | Large Qty 2 | 21mm | 9.5mm | 0.45mm |
Review the AIRO Implant Small product in 360°.
Review the AIRO Implant Large product in 360°.
Download the AIRO Implant Large Product Specification Sheet PDF.
Extended Malar


The Extended Malar is designed to add more volume to the malar or to rebuild the contour of the bony structure.
Extended Malar Dimensions
Cat# | Description | A | B |
---|---|---|---|
4201 | Small – Left | 45mm | 24mm |
4202 | Small – Right | 45mm | 24mm |
4203 | Medium – Left | 50mm | 26mm |
4204 | Medium – Right | 50mm | 26mm |
4205 | Large – Left | 55mm | 27mm |
4206 | Large – Right | 55mm | 27mm |
Review the Extended Malar product in 360°.
Download the Extended Malar Product Specification Sheet PDF.
SP1 Malar


The SP1 Malar is designed to subtly augment the malar bone.
SP1 Malar Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4082 | Small – Left | 50mm | 19mm | 3mm |
4083 | Small – Right | 50mm | 19mm | 3mm |
4084 | Regular – Left | 50mm | 19mm | 5mm |
4085 | Regular – Right | 50mm | 19mm | 5mm |
Review the SP 1 Malar product in 360°.
Download the Sp 1 Malar Product Specification Sheet PDF.
SP2 Malar


The SP2 Malar is designed to subtly augment the malar bone.
SP2 Malar Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4086 | Small – Left | 64mm | 19mm | 3mm |
4087 | Small – Right | 64mm | 19mm | 3mm |
4197 | Medium – Left | 64mm | 19mm | 4.5mm |
4198 | Medium – Right | 64mm | 19mm | 4.5mm |
4199 | Large – Left | 64mm | 19mm | 7mm |
4200 | Large – Right | 64mm | 19mm | 7mm |
Review the SP 2 Malar product in 360°.
Download the SP 2 Malar Product Specification Sheet PDF.
Midface Contour


The Midface Contour is an onlay designed to augment or repair the non-load-bearing bony structures of the midface.
Midface Contour Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4255 | Left | 60mm | 40mm | 4mm |
4256 | Right | 60mm | 40mm | 4mm |
Review the Midface Contour product in 360°.
Download the Midface Contour Product Specification Sheet PDF.
Midface Rim


The Midface Rim is designed to augment and repair non-load-bearing bony structures of the midface and the inferior orbital rim.
Midface Rim Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4189 | Left | 47mm | 28mm | 3mm |
4190 | Right | 47mm | 28mm | 3mm |
Review the Midface Rim product in 360°.
Download the Midface Rim Product Specification Sheet PDF.
Nasal Dorsal Shell


The Nasal Dorsal Shell provides surgeons with an excellent option for augmenting or correcting deformities of the nose.
Nasal Dorsal Shell Dimensions
Cat# | A | B | C |
---|---|---|---|
4103 | 43mm | 16mm | 22mm |
Review the Nasal Dorsal Shell Product in 360° (Under Construction).
Download the Nasal Dorsal Shell Product Specification Sheet PDF.
Nasal Shell


Nasal Shell Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
Regular | 38mm | 21mm | 17mm | |
4368 | Insert – Small (Included) | 30mm | 9mm | 4mm |
Insert – Large (Included) | 38mm | 9mm | 2.5mm | |
Large | 40mm | 20mm | 18mm | |
4369 | Insert – Small (Included) | 32mm | 9mm | 4mm |
Insert – Large (Included) | 41mm | 9mm | 3.1mm |
The Nasal Shell is an excellent reconstruction option for correcting nasal deformities. The implant mimics the shape of the nasal bones and upper lateral cartilage. Nasal Shell inserts can be used in dorsal areas where additional augmentation is required. An identical sterile implant is included for use as a template. Sutures may be placed in any desired location.
Review the Nasal Dorsal Shell Product in 360° (Under Construction).
Download the Nasal Shell Product Specification Sheet PDF (Under Construction).
Nasal Batten (2 Per Package)



The Nasal Batten is designed for nasal reconstruction procedures involving the external nasal valve. Nasal Battens are packaged 2 per package.
Nasal Batten Dimensions
Cat# | A | B | C |
---|---|---|---|
4240 | 25mm | 12.5mm | 0.60mm |
Review the Nasal Batten product in 360°.
Download the Nasal Shell Product Specification Sheet PDF.
Nasal Sheet



The Nasal Sheet provides surgeons with a solution for when nasal tip projection is required. The Nasal Sheet can be used to support the tip by implantation between the medial crura of the alar cartilage.
Nasal Sheet Dimensions
Cat# | A | B | C |
---|---|---|---|
4107 | 40mm | 9mm | 1.1mm |
Review the Nasal Sheet product in 360°.
Download the Nasal Sheet Product Specification Sheet PDF.
Nasal Radix



The Nasal Radix offers surgeons an excellent option to augment a low nasal radix.
Nasal Radix Dimensions
Cat# | A | B | C |
---|---|---|---|
4243 | 24mm | 3mm | 10mm |
Review the Nasal Radix product in 360°.
Download the Nasal Radix Product Specification Sheet PDF.
Nasal Arch



The Nasal Arch can be used effectively to create a nasal onlay where subtle augmentation of the dorsum is required. Care should be taken to place the Nasal Arch appropriately in the dorsum area and to avoid extending the Nasal Arch proximally into the soft nasal cartilage area of the tip. The edge of the Nasal Arch should be feathered to promote a smooth transition from the implant to the patient’s natural contour.
Nasal Arch Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4244 | Small | 70mm | 13mm | 2mm |
4245 | Medium | 70mm | 15mm | 2mm |
4246 | Large | 70mm | 17mm | 2mm |
Review the Nasal Arch product in 360°.
Download the Nasal Arch Product Specification Sheet PDF.
Nasal Dorsum



Petite Nasal Dorsum Design with Randal Tanh Hoang Pham, M.D., F.S., F.A.C.S.
The Nasal Dorsum is designed to provide subtle augmentation to the dorsum.
Nasal Dorsum Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4239 | Small | 54mm | 6mm | 11mm |
4238 | Large | 67mm | 9mm | 14mm |
4313 | Petite | 4mm | 4mm | 45mm |
4314 | Petite | 4mm | 4mm | 55mm |
4315 | Petite | 5mm | 5mm | 45mm |
4316 | Petite | 5mm | 5mm | 55mm |
4317 | Petite | 6mm | 9mm | 55mm |
Review the Nasal Dorsum product in 360°.
Review the Nasal Dorsum Petite product in 360°.
Download the Nasal Dorsum Product Specification Sheet PDF.
Paranasal


Paranasal implants are designed for augmentation and restoration of the midface in patients who have midfacial deficiency.
Paranasal Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4156 | Small – Left | 28mm | 26mm | 4.5mm |
4157 | Small – Right | 28mm | 26mm | 4.5mm |
4158 | Large – Left | 30mm | 28mm | 7mm |
4159 | Large – Right | 30mm | 28mm | 7mm |
Review the Paranasal product in 360°.
Download the Nasal Dorsum Product Specification Sheet PDF.
Contoured Mandibular Angle



The Contoured Mandibular Angle is designed to subtly augment the mandible.
Contoured Mandibular Angle Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4303 | Left | 59mm | 29mm | 7mm |
4304 | Right | 59mm | 29mm | 7mm |
Review the Contoured Mandibular Angle product in 360°.
Download the Contoured Mandibular Angle Product Specification Sheet PDF.
SP Mandibular Angle



The SP Mandibular Angle is designed to conform to the posterior and inferior borders of the mandibular angle.
SP Mandibular Angle Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4150 | Small – Left | 65mm | 35mm | 3mm |
4151 | Small – Right | 65mm | 35mm | 3mm |
4152 | Medium – Left | 65mm | 35mm | 7mm |
4153 | Medium – Right | 65mm | 35mm | 7mm |
4154 | Large – Left | 65mm | 35mm | 11mm |
4155 | Large – Left | 65mm | 35mm | 11mm |
Review the SP Mandibular Angle product in 360°.
Download the SP Mandibular Angle Product Specification Sheet PDF.
Lateral Augmentation Mandible



The Lateral Augmentation Mandible is designed to subtly augment the lateral projection of the mandible.
Lateral Augmentation Mandible Dimensions
Cat# | Description | A | B | C | D | E |
---|---|---|---|---|---|---|
4305 | Regular – Left | 47mm | 38mm | 3mm | 3mm | 6.5mm |
4306 | Regular – Right | 47mm | 38mm | 3mm | 3mm | 6.5mm |
4307 | Large – Left | 57mm | 40mm | 4mm | 3mm | 10mm |
4308 | Large – Right | 57mm | 40mm | 4mm | 3mm | 10mm |
Review the Lateral Augmentation Mandible product in 360°.
Download the Lateral Augmentation Mandible Product Specification Sheet PDF.
Ramus of the Mandible



Ramus of the Mandible Dimensions
Cat# | Description | A | B | C | D | E |
---|---|---|---|---|---|---|
4095 | Large 5mm – Left | 79mm | 32mm | 5mm | 10mm | 7mm |
4096 | Large 5mm – Right | 79mm | 32mm | 5mm | 10mm | 7mm |
The Ramus of the Mandible is designed for augmentation of the ramus of the mandible
Review the Ramus of the Mandible product in 360°.
Download the Ramus of the Mandible Product Specification Sheet PDF.
Geniomandibular Groove


The Geniomandibular Groove is designed to augment the geniomandibular groove. The implant is divided medially for separate insertion of the left and right pieces.
Geniomandibular Groove Dimensions
Cat# | A | B | C |
---|---|---|---|
4302 | 45mm | 41mm | 4mm |
Review the Geniomandibular Groove product in 360°.
Download the Geniomandivular Groove Product Specification Sheet PDF.
Contoured Two-Piece Chin


The Contoured Two-Piece Chin is designed with a gradual taper and concave posterior surface to provide an excellent anatomical fit to the bony anatomy.
Contoured Two-Piece Chin Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4088 | Small | 72mm | 42mm | 3mm |
4089 | Medium | 74mm | 42mm | 5mm |
4090 | Large | 78mm | 50mm | 7mm |
4091 | Extra Large | 80mm | 55mm | 9mm |
Review the Contoured Two-Piece Chin product in 360°.
Download the Contoured Two-Piece Chin Product Specification Sheet PDF.
Two-Piece Chin


The Two-Piece Chin is designed to allow for easy insertion and placement of the implant. The surgeon can then attach the components together for proper alignment.
Two-Piece Chin Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4092 | Small | 56mm | 33mm | 5mm |
4093 | Medium | 56mm | 36mm | 7mm |
4094 | Large | 57mm | 38mm | 9mm |
Review the Two-Piece Chin product in 360°.
Download the Two-Piece Chin Product Specification Sheet PDF.
Button Chin


The Button Chin is designed for subtle augmentation to the medial anterior point of the chin. Having multiple sizes allows the surgeon to select the most natural looking configuration.
Button Chin Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4265 | Small | 40mm | 25mm | 4mm |
4266 | Medium | 47.5mm | 37.5mm | 5.5mm |
4267 | Large | 48.5mm | 38mm | 7mm |
Review the Button Chin product in 360°.
Review the Button Chin (Small) product in 360°.
Download the Button Chin Product Specification Sheet PDF.
Round Extended Chin


The Round Extended Chin is designed to provide tri-dimensional projection (anterior, lateral, and inferior).
Round Extended Chin Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4259 | Small | 45mm | 47mm | 3mm |
4260 | Medium | 45mm | 47mm | 5mm |
4261 | Large | 45mm | 47mm | 7mm |
Review the Round Extended Chin product in 360°.
Download the Round Extended Chin Product Specification Sheet PDF.
Square Extended Chin


The Square Extended Chin is designed to provide tri-dimensional projection (anterior, lateral, and inferior).
Square Extended Chin Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4262 | Small | 45mm | 47mm | 3mm |
4263 | Medium | 45mm | 47mm | 5mm |
4264 | Large | 45mm | 47mm | 7mm |
Review the Square Extended Chin product in 360°.
Download the Square Extended Chin Product Specification Sheet PDF.
Two-Piece Auricular Implant


The design of the Su-Por Auricular implants allows surgeons to custom shape the height and projection of the helical rim to match the contralateral ear of the patient. The porous material provides a structural base for a temporal parietal fascia flap and skin grafts. The success of the implant depends on the technique of the surgeon; the porous structure requires a vascular tissue flap such as a temporal parietal fascia flap and skin graft, to prevent late exposure of the implant.
Two-Piece Auricular Implant Dimensions
Cat# | Description | A | B |
---|---|---|---|
4099 | Ear Base – Left | 32mm | 63mm |
4100 | Ear Base – Right | 32mm | 63mm |
4101 | Helical Rim – Rim | 39mm | 63mm |
4102 | Helical Rim – Right | 39mm | 63mm |
Review the Two-Piece Auricular Ear Base product in 360°.
Review the Two-Piece Auricular Implant Ear Base – Helical Rim product in 360°.
Download the Two-Piece Auricular Ear Implant Product Specification Sheet PDF.
Ear Wedge


The Ear Wedge is designed to enhance the projection of a surgically reconstructed ear. The Ear Wedge can be trimmed to match the projection of the contralateral ear.
Ear Wedge Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4292 | Right | 15mm | 44mm | 11mm |
4293 | Left | 15mm | 44mm | 11mm |
4294 | Thin – Left | 15mm | 44mm | 11mm |
4295 | Thin – Right | 15mm | 44mm | 11mm |
Review the Ear Wedge product in 360°.
Review the Ear Wedge Thin product in 360°.
Download the Ear Wedge Product Specification Sheet PDF.
Mastoid



The Mastoid provides surgeons with an excellent option for repair of mastoid defects. The regular Mastoid is available in left and right configurations while the small Mastoid provides a universal fit.
Mastoid Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4132 | Small | 36mm | 45mm | 1.5mm |
4124 | Left | 56mm | 53.3mm | 1.5mm |
4125 | Right | 56mm | 53.3mm | 1.5mm |
Review the Mastoid product in 360°.
Review the Mastoid Small product in 360°.
Download the Mastoid Specification Sheet PDF.
Pterional


The Pterional is designed to correct temporal hollowing in patients who have had surgery involving the pterional approach to the brain. The implant is placed deep to the temporalis during closure.
Pterional Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4122 | Left | 6mm | 43mm | 44mm |
4123 | Right | 6mm | 43mm | 44mm |
Review the Petrional product in 360°.
Download the Pterional Specification Sheet PDF.
Temporal Flex Grid
Temporal Flex Grid

SP Temporal Flex Grid

Temporal Flex Grid

SP Temporal Flex Grid

The Temporal Flex Grid is designed to augment deficient soft tissue in the temporal region. The Temporal Flex Grid has a thin contoured temporal surface designed for a proper anatomical fit and a more natural result.
Temporal Flex Grid Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4110 | Small – Left | 61mm | 78mm | 18mm |
4111 | Small – Right | 61mm | 78mm | 18mm |
4112 | Medium – Left | 74mm | 93mm | 20mm |
4113 | Medium – Right | 74mm | 93mm | 20mm |
4114 | Large – Left | 82mm | 105mm | 20mm |
4115 | Large – Right | 82mm | 105mm | 20mm |
4363 | SP – Small | 70mm | 70mm | 10mm |
4364 | SP – Medium | 88mm | 86mm | 15mm |
4365 | SP – Large | 98mm | 95mm | 18mm |
Review the Temporal Flex Grid product in 360°.
Review the SP Temporal Flex Grid product in 360°.
Download the Temporal Flex Grid Specification Sheet PDF.
Burr Hole Cover



The Burr Hole Cover is designed to fit into and over holes made by a cranial perforator. The large Burr Hole Cover has a 14mm diameter with a stem that is easily modified. The small Burr Hole Cover is designed for 5mm diameter holes.
Burr Hole Cover Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4130 | Small | 15mm | 3mm | 5mm |
4131 | Large | 29mm | 7mm | 14mm |
Review the Burr Hole Cover Small product in 360°.
Review the Burr Hole Cover Large product in 360°.
Download the Burr Hole Cover Specification Sheet PDF.
Sellar Floor



The Sellar Floor is designed to repair the sellar floor. It is available in two sizes and configurations. The larger Sellar Floor is designed with three small tabs to facilitate handling and placement while the regular has a single tab. The Large Sellar Floor also has a membrane layer to aid in preventing tissue ingrowth.
Sellar Floor Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4126 | Regular | 20mm | 20mm | 2.5mm |
4129 | Large + Membrane | 40mm | 40mm | 2.5mm |
Review the Sellar Floor product in 360°.
Review the Sellar Floor Large product in 360°.
Download the Sellar Floor Specification Sheet PDF.
Cranial Flex Grid



The Cranial Flex Grid is designed to fill full thickness cranial defects as an option to calvarial bone grafts. The Cranial Flex Grid has a design that is strong and flexible and allows for the implant to be cut to the desired shape.
Cranial Flex Grid Dimensions
Cat# | A | B | C |
---|---|---|---|
4108 | 97mm | 106mm | 6mm |
Review the Cranial Flex Grid product in 360°.
Download the Cranial Flex Grid Specification Sheet PDF.
Cranial Hemisphere


The Cranial Hemisphere is designed to provide surgeons with a reconstructive option for large cranial defects. The Cranial Hemisphere provides alternatives to customized implants, grafts, and other implant materials.
Cranial Hemisphere Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4116 | Left | 124mm | 170mm | 4.5mm |
4117 | Right | 124mm | 170mm | 4.5mm |
4118 | Left | 124mm | 170mm | 6mm |
4119 | Right | 124mm | 170mm | 6mm |
Review the Cranial Hemisphere product in 360°.
Download the Cranial Hemisphere Specification Sheet PDF.
Cranial Dome


The Cranial Dome is designed to provide surgeons with a reconstructive option for large cranial defects. The Cranial Dome approximates the contour of the superior 1/3 of the cranium and is available in two thicknesses.
Cranial Dome Dimensions
Cat# | A | B | C |
---|---|---|---|
4120 | 150mm | 180mm | 4mm |
4121 | 150mm | 180mm | 6mm |
Review the Cranial Dome product in 360°.
Download the Cranial Dome Specification Sheet PDF.
Occipital


Reconstructive option for large cranial defects. Provides an alternative to customized implants, grafts, and other implant materials. Approximates shape of the occipital region while allowing a surgeon to bend and trim the implant to meet the needs of the individual patient.
Occipital Dimensions
Cat# | A | B | C |
---|---|---|---|
4439 | 114mm | 101mm | 6mm |
Review the Occipital product in 360°.
Download the Occipital Specification Sheet PDF.
Capocelli Plate


Designed with Anthony L. Capocelli, M.D.
Restores cranium following cranial decompression procedures. Screws or sutures can be placed in any desired location. Full porous material for tissue ingrowth. Implant bends and holds desired shape without heating. Easy to trim with scissors or scalpel.
Capocelli Plate Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4461 | Small | 43mm | 36mm | 3mm |
4462 | Medium | 48mm | 40mm | 3mm |
4463 | Large | 54mm | 45mm | 3mm |
Review the Capocelli Plate product in 360°.
Download the Capocelli Plate Specification Sheet PDF.
Orbito-Zygomatic


The Orbito-Zygomatic is an excellent option for restoration of bony surfaces following an orbito-zygomatic craniotomy.
Orbito-Zygomatic Dimensions
Cat# | Description | A | B | C |
---|---|---|---|---|
4072 | Left | 33mm | 38mm | 0.8mm |
4073 | Right | 33mm | 38mm | 0.8mm |
Review the Orbito-Zygomatic product in 360°.
